Our Products
Our range of precision finished seamless and welded pipes, Tubes Including U-Tubes, Flanges and Fittings is made available in a wide range sizes.

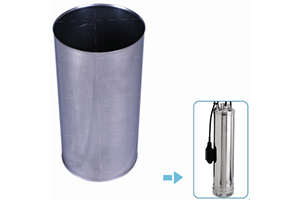

- Pipes for Submersible Pumps & Motors
- Stainless Steel Schedule Pipes
- Stainless Steel Round Pipes
- Precision Components
- Silencer pipes for Automobiles
- Inlet & Outlet Rings for Submersible Pumps
All Pipes ovality tolerance can be maintained upto 0.1 mm depending on Length and diameter as per customer requirements.
3" Pipes
- Inner Diameter from 60, 64, 67, 69, 70, 71 & 72 (mm) Thickness from 0.7 to 1.6 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc
4" Pipes
- Inner Diameter from 80, 82, 84, 86, 87, 90, 92, 94, 95 & 97 (mm)
- Thickness from 0.7 to 2.5 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc
5" Pipes
- Inner Diameter from 100, 105, 107, 112, 114, 117 & 119 (mm)
- Thickness from 0.7 to 2.0 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc
6" Pipes
- Inner Diameter from 127, 130, 135, 137, 139, 140, 143, 147 & 150 (mm)
- Thickness from 0.7 to 5 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc
8" Pipes
- Inner Diameter from 200 upto 350 (mm)
- Thickness from 1.2 to 5 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc

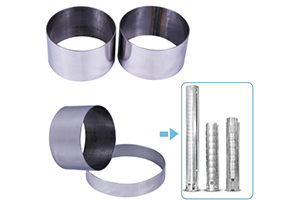

Impeller & Diffuser Housing Rings
- Inner Diameter from 60 to 250 (mm)
- Thickness from 0.7 to 3.0 (mm)
- Grades : JSL AUS, 202, AISI 304, 304L, 316, 316L, etc
Products

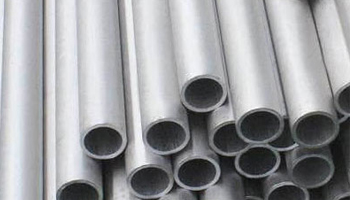

Stainless Steel Schedule Pipe
| Stainless Steel Schedule Pipe | |
|---|---|
| Product size | 2", 3", 4″, 5″, 6″, 7″, 8″, 9″, 10″ |
| Grade | J4, J1, 304, 304L, 310, 316, 316L, 321, Inconel, Duplex Material |
| Thickness | 0.5 to 5.00 mm |

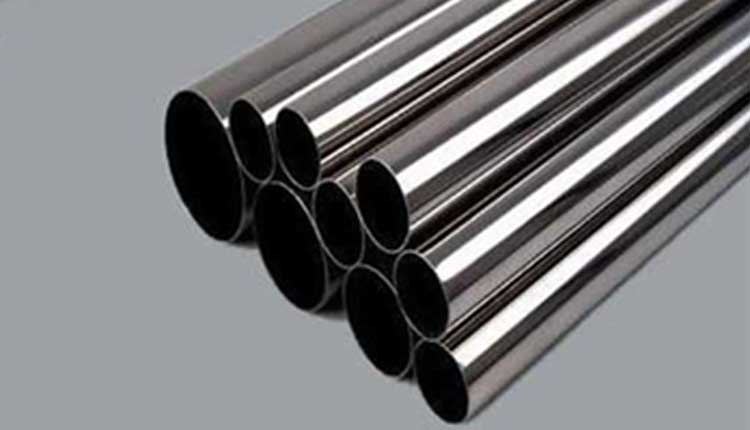

Stainless Steel Round Pipe
| Stainless Steel Round Pipe | |
|---|---|
| Product size | 2", 3", 4″, 5″, 6″, 7″, 8″, 9″, 10″ |
| Grade | J4, J1, 304, 304L, 310, 316, 316L, 321, Inconel, Duplex Material |
| Thickness | 0.5 to 5.00 mm |

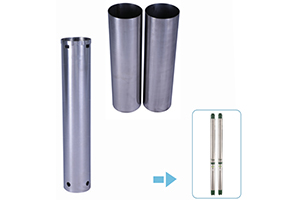

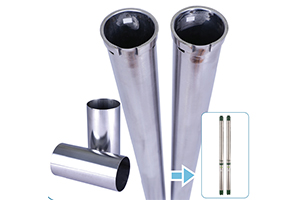

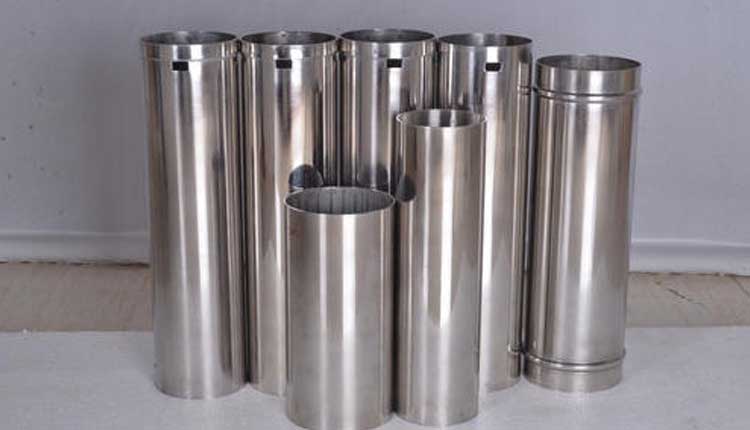

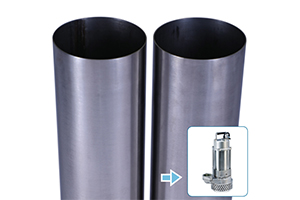

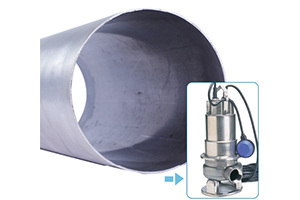

Pipes For Submersible Pump
| Pipes For Submersible Pump | |||
|---|---|---|---|
| Standard Size | Standard Size | Standard Size | Standard Size |
| 50.0 Dia | 0.2 | ||
| 69.8 Dia | 95.0 Dia | 139.0 Dia | 0.6 |
| 71.0 Dia | 101.5 Dia | 164.6 Dia | 0.9 |
| 80.0 Dia | 105.0 Dia | 172.0 Dia | 1.0 |
| 81.0 Dia | 108.8 Dia | 174.0 Dia | 1.2 |
| 81.5 Dia | 109.0 Dia | 176.0 Dia | 1.5 |
| 83.5 Dia | 109.5 Dia | 180.0 Dia | 2.0 |
| 84.5 Dia | 110.0 Dia | 181.0 Dia | 2.5 |
| 85.0 Dia | 115.8 Dia | 182.0 Dia | 3.0 |
| 85.5 Dia | 124.0 Dia | 183.5 Dia | 4.0 |
| 89.8 Dia | 124.8 Dia | 184.0 Dia | 5.0 |
| 92.0 Dia | 130.0 Dia | 185.5 Dia | 6.0 |
| 92.5 Dia | 135.0 Dia | ||
| 93.0 Dia | 137.0 Dia | ||
| 94.0 Dia | 138.0 Dia |
(V3, V4, V5, V6, V8 Submersible Pump pipe /Motor pipe).
Fully Assembled Stators
We also manufactures fully Assembled Stators for "3", "4", "5", "6" and "8" pumps as per customer Requirements
Additional availability
We manufacture 0.20 mm tubes for CAN motors in different diameters from 25 mm to 75 mm in size
Rings of 20 mm and other lengths are also available from us.
We supply tubes with special grooves for circlip or ring insert, as well as special welding for oil filled motors.
Specialized in cutting lengths as per the specifications of the parties.
Our Quality Standard
Weld line testing at 20 kg
Length tolerance in 0.1 mm.
Ovality 0.3 mm.
Straightness 0.1mm max. For 500 mm length / 0.3mm for 1 meter length.
Finishing up to 1200 grit.
